BROMIC Affinity Smart-Heat Dimmer Controllers

BROMIC Affinity Smart-Heat Dimmer Controllers

SKU: BH3130061

$979.00
$1,031.00
SAVE $52.00
  • Multiple Connection Options: Supports Wi-Fi, Bluetooth, and optional Ethernet connectivity

  • Precision Heat & Light Control: Offers full on/off and dimming functionality for both heater and LED light rail

  • Zone Management: Allows grouping of heaters into zones for targeted comfort control

  • Smart Scheduling: Includes customizable timers and schedule settings through the Bromic app

  • Voice Assistant Integration: Compatible with Amazon Alexa and Google Home for hands-free control

  • Multi-User Management: Provides admin control and user permissions for managing multiple users and locations
Number of Channels
    Enjoy secure payments powered by:
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Google Pay
  • Shop Pay

Email Me Product Details

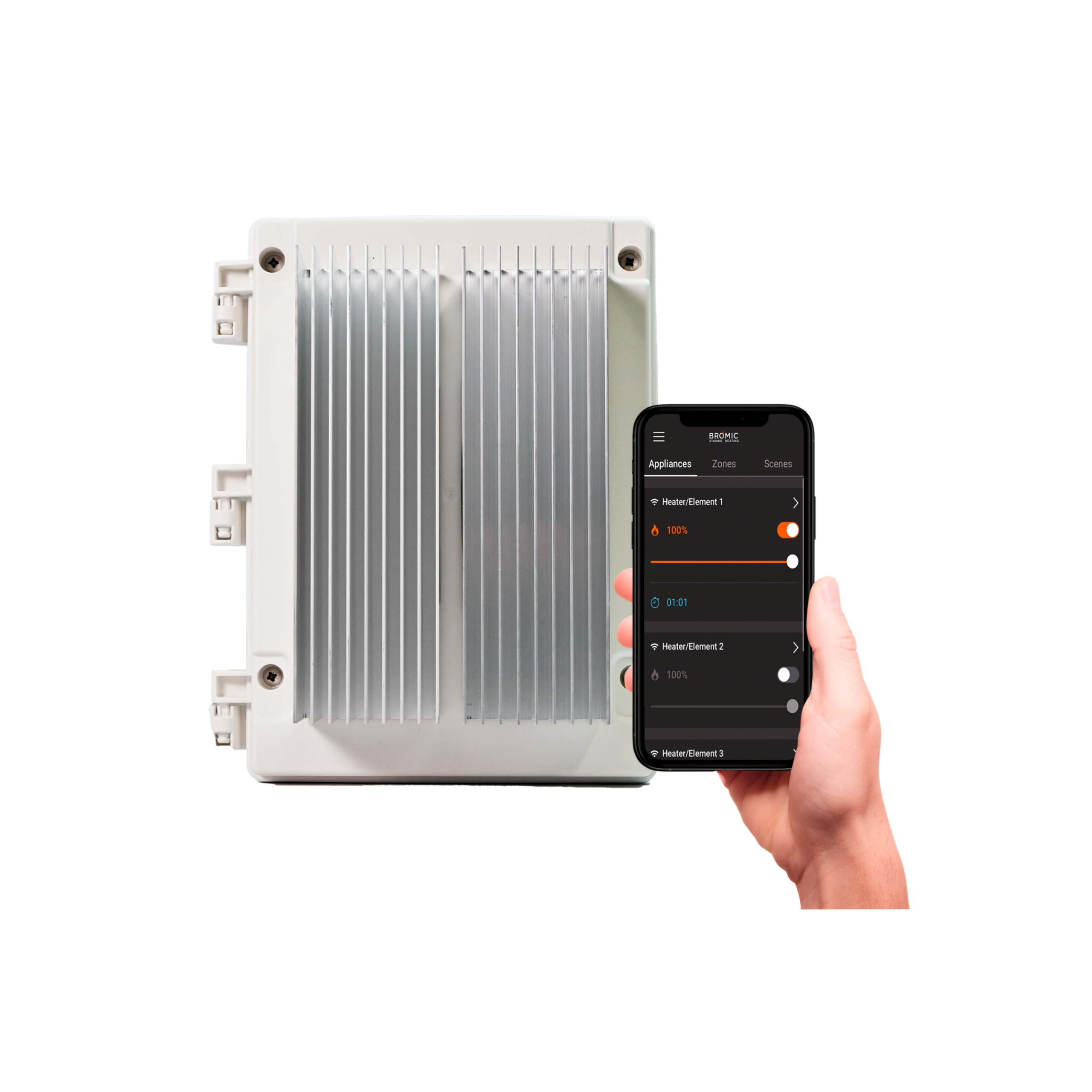

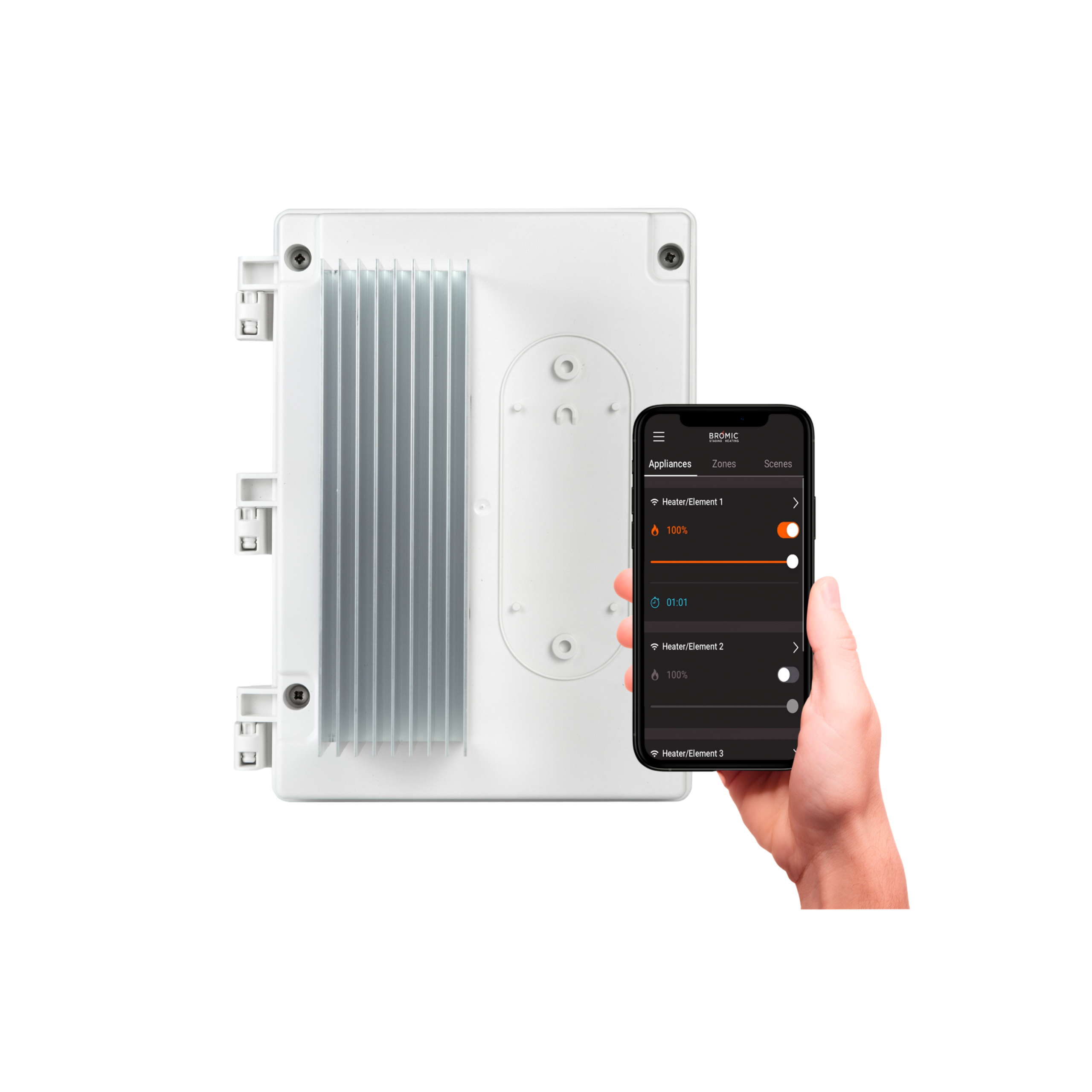

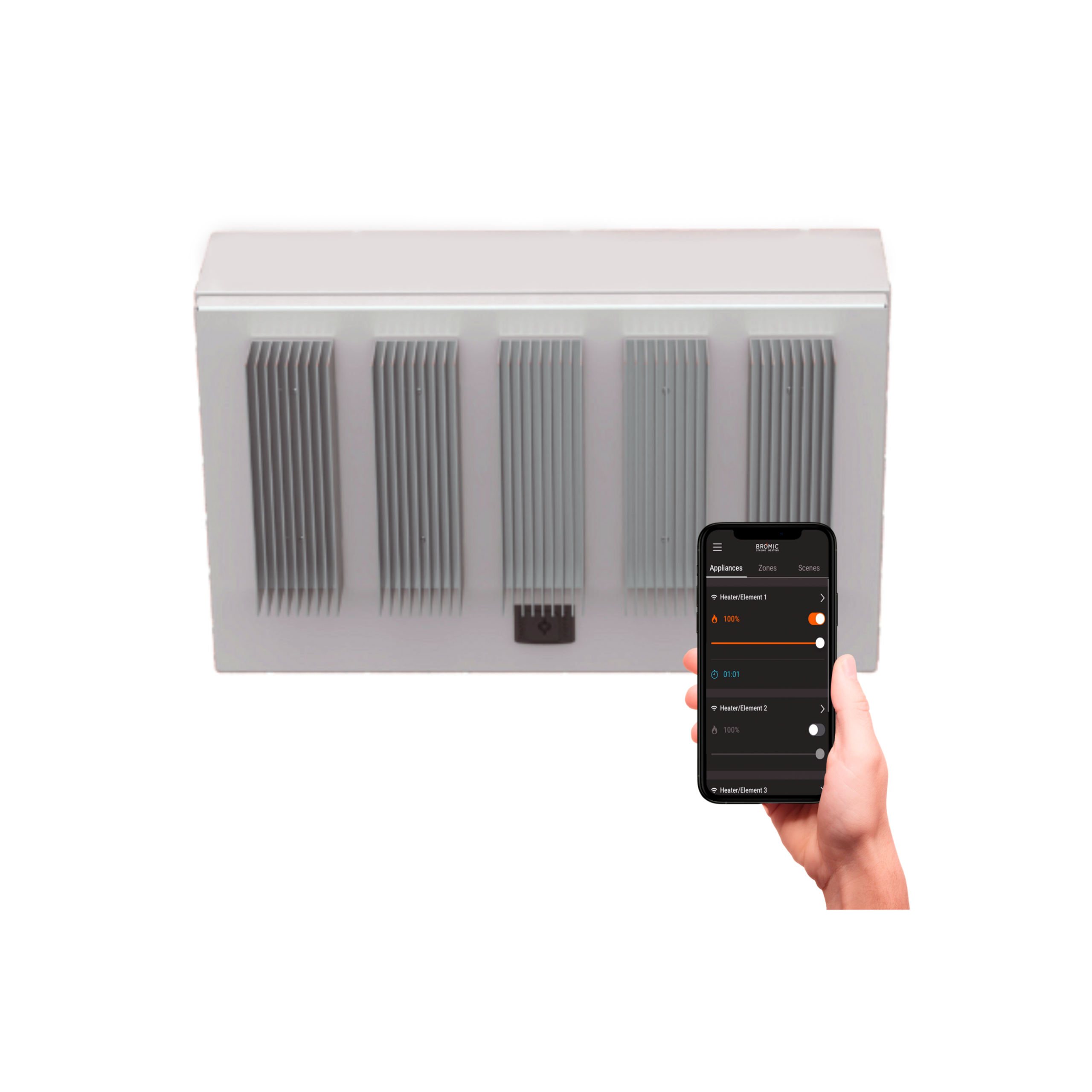

Experience the ultimate in personalized comfort with the Affinity Smart-Heat™ Eclipse Controllers, designed exclusively for Bromic Platinum and Tungsten Collection electric heaters, the Affinity Dimmer Series comes in 1 and 2 channel input options – with each channel controlling up to 6000W of power. Whether you're using the 1 or 5 channel input options for the fixed Eclipse Pendant or the included dimmer in the Eclipse Portable, you gain full control over both heat and ambient lighting.

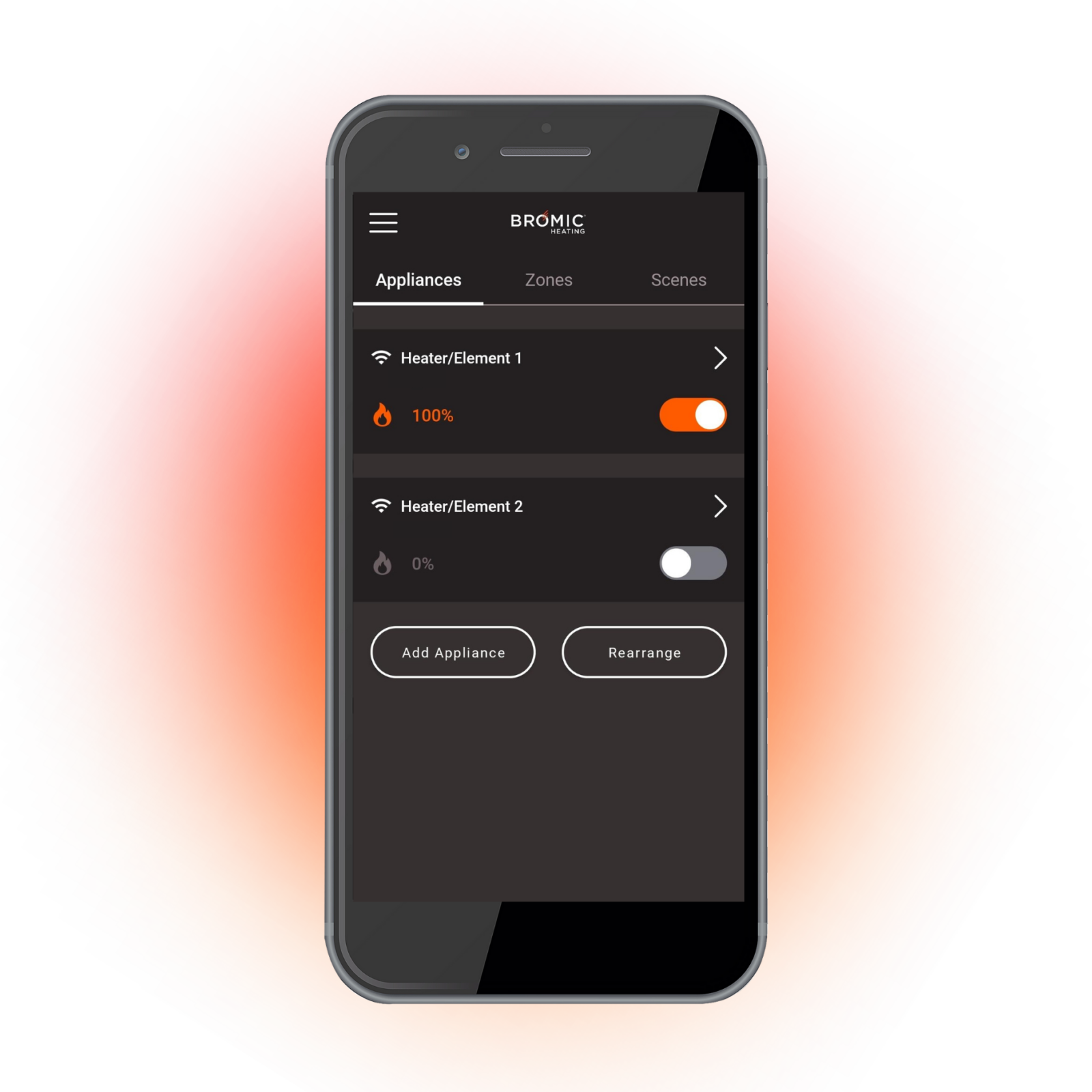

With seamless integration via Wi-Fi (2.4GHz), Bluetooth, or Ethernet, the system connects to the Bromic Heating app, giving you intuitive and granular control of heat levels, lighting, and scheduling—right from your smartphone. Whether managing multiple heaters, setting timers, or syncing with smart home systems like Alexa and Google Home, this controller redefines outdoor comfort. Effortlessly create zones, manage multiple sites, and delegate user access all in one place.

Order your new Affinity Smart-Heat™ Eclipse Controller for your heater now or call us at 905-760-9200 to talk to a sales representative.

DOCUMENT LIST

Spec Sheet Click To View
Product Catalogue Click To View
Affinity Dimmer Specifications
Specification 1 Channel 2 Channel 5 Channel
Part Number BH3130061 BH3130062 BH3130063
Voltage - Max Capacity Per Channel 208-277V – 6kW 208-277V – 6kW 3N-220/380V – 6kW
3N-230/400V – 6kW
3N-240/415V – 6kW
3N-277/480V – 6kW
3∅-120/208V – 6kW
Operating Temperature Range -4°F to +86°F -4°F to +86°F -4°F to +86°F
Non-Operating Temperature Range -22°F to +158°F -22°F to +158°F -22°F to +158°F
Protection Rating IP54 IP54 IP54

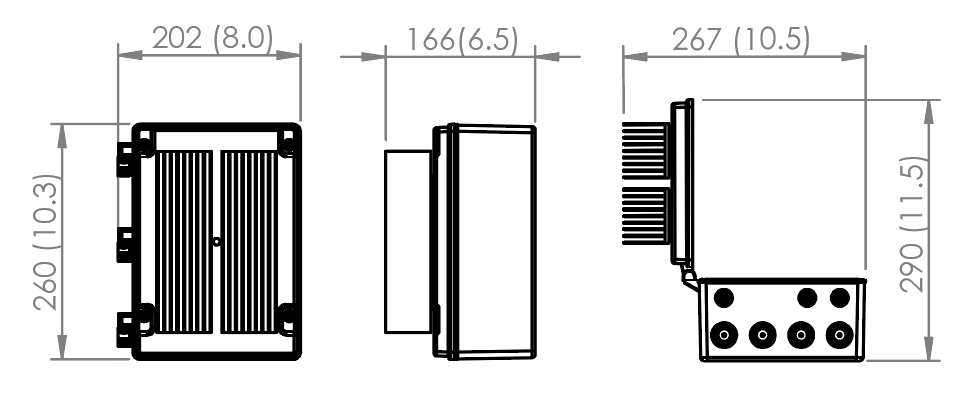

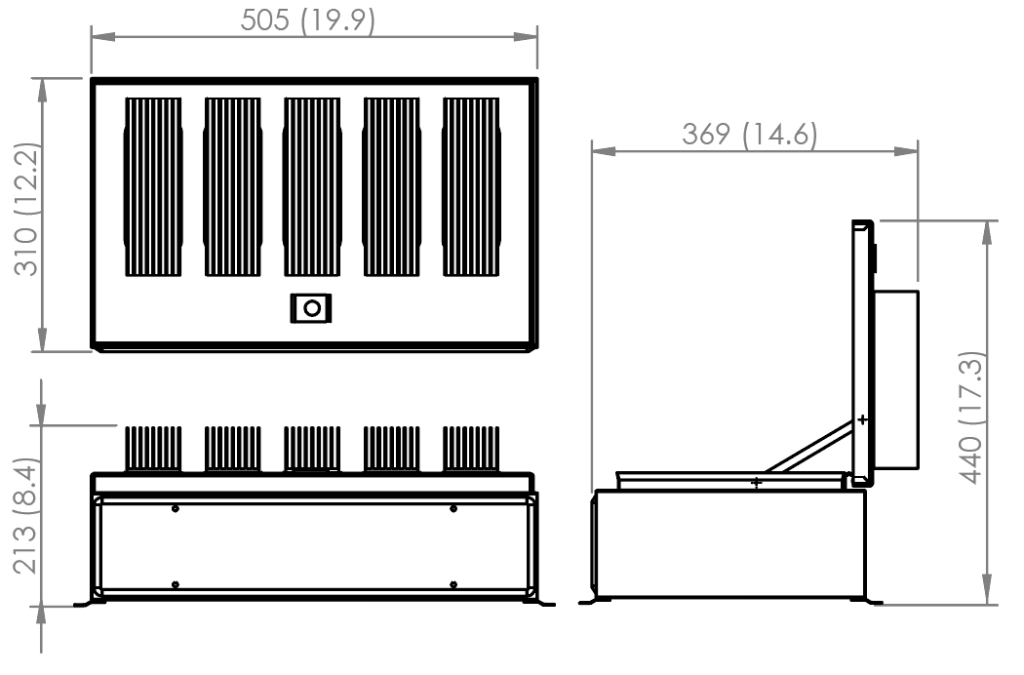

Dimensions 11.4 × 8.0 × 6.4″ 11.4 × 8.0 × 6.4″ 19.7 × 13.4 × 10.0″
Weight 3.5 lbs 5.3 lbs 27.6 lbs
WiFi Connectivity 2.4GHz 2.4GHz 2.4GHz
Warranty 1 Year Parts 1 Year Parts 1 Year Parts
Heater Compatibility • Platinum Electric & Platinum Gas
• Tungsten Electric & Tungsten Gas 		• Platinum Electric & Platinum Gas
• Tungsten Electric & Tungsten Gas 		• Platinum Electric & Platinum Gas
• Tungsten Electric & Tungsten Gas

All specifications subject to change without notice. Contact manufacturer for latest information.
