BROMIC Affinity Smart-Heat Eclipse Controllers

BROMIC Affinity Smart-Heat Eclipse Controllers

SKU: BH8380051

$929.00
$923.00
SAVE $0.00
  • Dual Control Functions: Manages both heat and LED light output on Eclipse Pendant Heaters

  • Channel Options: Offers 1 and 5 channel input models for flexible configuration

  • App Integration: Connects via Wi-Fi or Bluetooth through the Bromic Heating App

  • Timer Settings: Supports timed shut-off and schedule automation for Wi-Fi connected units

  • Single Heater Control: Designed to operate one Eclipse Pendant Heater per controller

  • Secure Access: 5-Channel controllers include a bi-locker key for added safety and access control
Number of Channels
    Enjoy secure payments powered by:
  • Visa
  • Mastercard
  • Apple Pay
  • PayPal
  • Google Pay
  • Shop Pay

Email Me Product Details

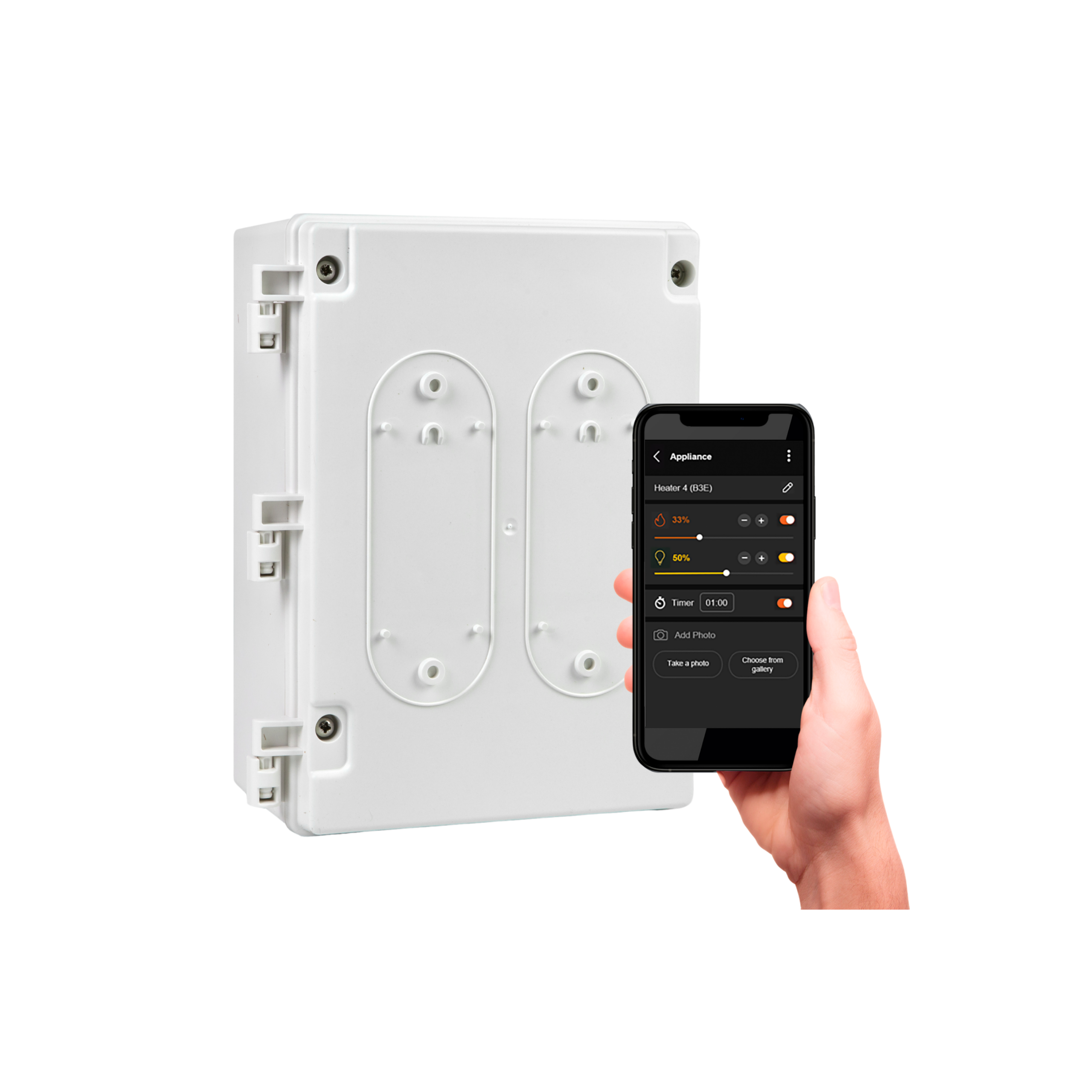

Take control of your outdoor heating and lighting experience with the Affinity Smart-Heat™ Eclipse Controllers, purpose-built for the Bromic Eclipse Pendant Collection. Available in 1 and 5 channel input options for the fixed Pendant, and pre-installed in the Eclipse Portable model, these controllers let you fine-tune both heat output and LED light rail brightness. Through Wi-Fi (2.4GHz) or Bluetooth connectivity, the Bromic Heating App offers intuitive control, timer settings, and scheduling, allowing you to create the perfect ambiance for any occasion. Each controller is designed to manage a single Eclipse Pendant Heater, giving you dedicated, precise functionality. For enhanced security, the 5-Channel controller features a lockable enclosure with a bi-locker key included.

Order your new Affinity Smart-Heat™ Eclipse Controller now or call us at 905-760-9200 to talk to a sales representative.

DOCUMENT LIST

Spec Sheet Click To View
Product Catalogue Click To View
Affinity Eclipse Specifications
Specification 1 Channel 5 Channel
Part Number BH8380051 BH8380055
Voltage - Max Capacity Per Channel 220-240V – 4kW 220-240V – 6kW
Operating Temperature Range -4°F to +86°F -4°F to +86°F
Non-Operating Temperature Range -22°F to +158°F -22°F to +158°F
Protection Rating IP54 IP54

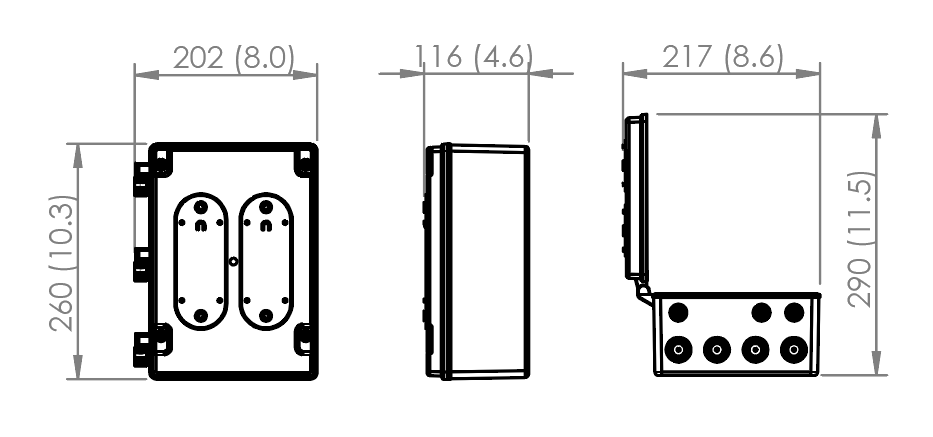

Dimensions 11.4 × 8.0 × 4.4″ 19.7 × 13.4 × 10.0″
Weight 3.5 lbs 33.1 lbs
WiFi Connectivity 2.4GHz 2.4GHz
Warranty 1 Year Parts 1 Year Parts
Heater Compatibility Eclipse Electric Eclipse Electric
