Electric Heater Series Specifications at a Glance
| Model Number | 3000 Series | 4000 Series | 6000 Series |
| Fuel Type | Electric | Electric | Electric |

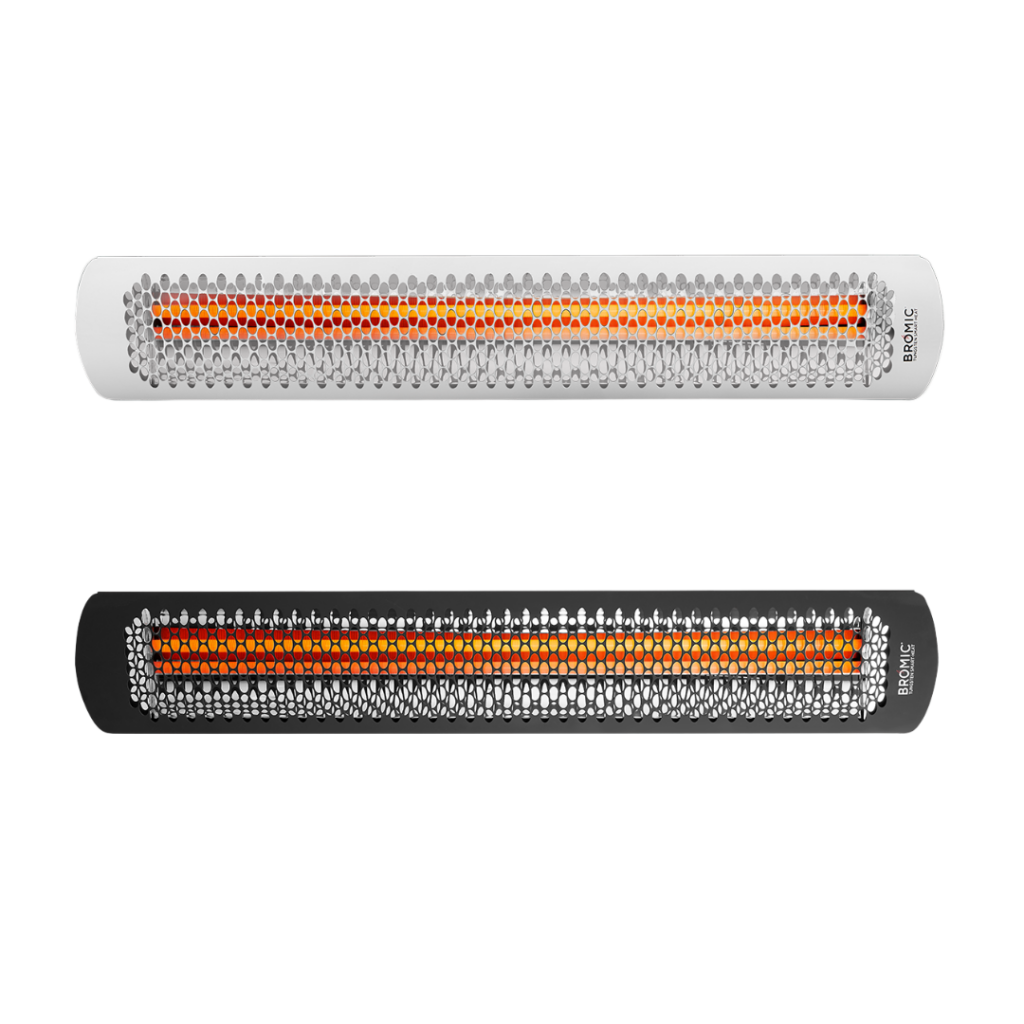

| Color | Black | White | Black | White | Black | White |
| Weight | 22 lbs | 20 lbs | 22 lbs |
| Model # | BH0420033 (220V-240V BLACK) BH0420035 (208V BLACK) BH0420013 (220V-240V WHITE) BH0420036 (208V WHITE) |
BH0610003 | BH0610004 |
| Heat Area | 100 ft² | 130 ft² | 160 ft² |
| Rated Current ** | 240V/12.5A 208V/14.42A |
240V/16.6A 208V/19.23A |
240V/25A 208V/28.85A |
| Minimum Floor Clearance | Wall 72" | Ceiling 96" | Wall 72" | Ceiling 96" | Wall 72" | Ceiling 96" |
| Approval Certification | Intertek ETL / cETL 4005951 | Intertek ETL / cETL 4005951 | Intertek ETL / cETL 4005951 |
| Warranty | 1 Year Parts (7 Years on Elements) | 1 Year Parts (7 Years on Elements) | 1 Year Parts (7 Years on Elements) |
Control Options
| 3000 Series | 4000 Series | 6000 Series | |
| Affinity On/Off | ✓ | ✓ | ✓ |
| Affinity Dimmer | ✓ | ✓ | ✓ |
| Manual Wall Switch | ✓ | ✓ | ✓ |
* Independently control up to six zones of heaters with unlimited heaters per zone from a single control. Please note a dimmer controller is required. Control operates within 100ft of heaters.
** Available in varying voltages: 240V, 208V
